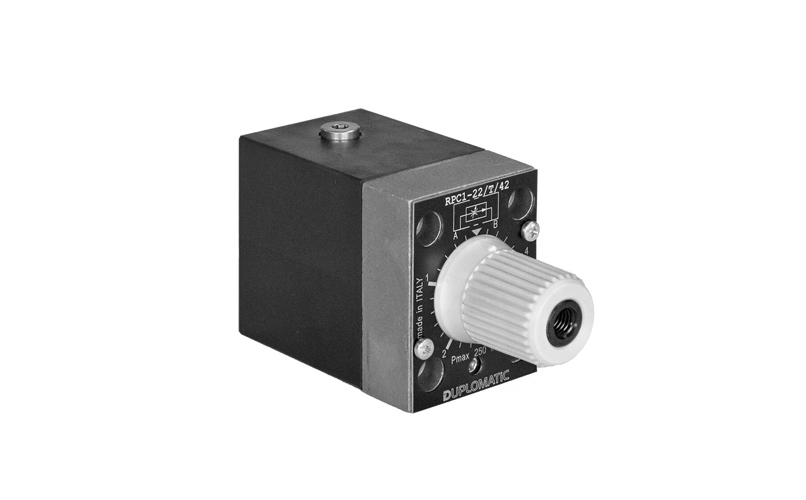

THREE-PORT FLOW CONTROL VALVE, PRESSURE AND TEMPERATURE COMPENSATED RPC1-T3
Descripcion
The RPC1-T3 is a three-port pressure- and temperature-compensated flow control valve for subplate mounting. This valve divides the inlet flow into a fixed (controlled) flow and a residual flow. The fixed flowrate value is set by means of a knob that can be can be locked in any position. Adjustment can be with three-turns knob or one-turn. Five flow rate adjustment ranges up to 22 l/min are available.
