TWO- AND THREE-PORT PRESSURE COMPENSATOR WITH FIXED OR VARIABLE ADJUSTMENT PCK06
Descripcion

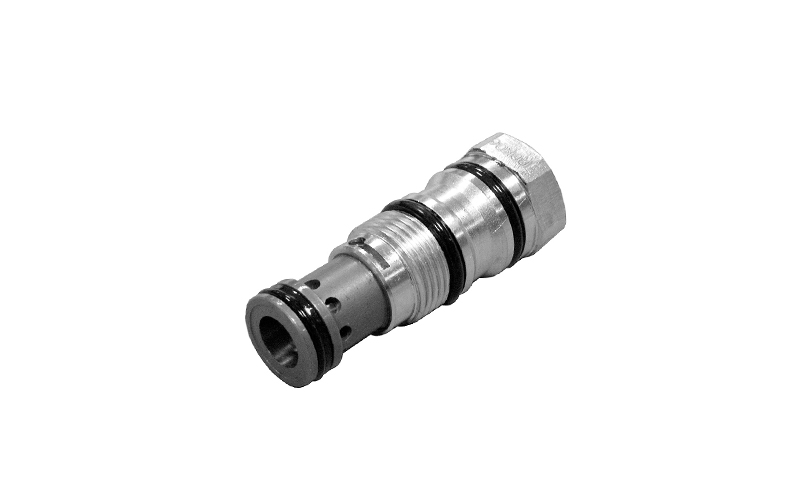

PCK06 valves are two or three-port pressure compensators, with fixed or variable adjustment, cartridge type, for block or manifold application. This valve keeps the pressure drop setting fixed between the P and the X pilot connections. It is employed together with proportional directional valves, in order in order to obtain a controlled flow independent of pressure changes. PCK06 with variable adjustment can be set from 7 to 33 bar, by means of a socket hex adjustment screw or an adjustment knob. PCK06 with fixed adjustment is available with set of 4 bar or 8 bar.
