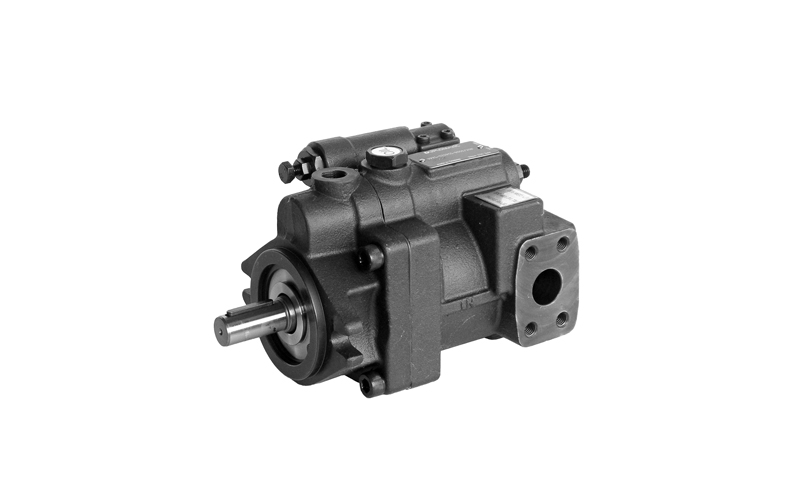

VARIABLE DISPLACEMENT AXIAL-PISTON PUMPS FOR MEDIUM-LOW PRESSURE VPPL
Descripcion
The VPPL are axial piston pumps with displacement by means of an oscillating plate, suitable for medium pressure open circuit applications. They are available in seven sizes with displacements of 8,16, 22, 36, 46, 70 and 100 cm3/rev. The flow rate delivered by the pump is proportional to the number of revolutions and the angle of inclination of the swash plate, which can be modulated continously. The maximum inclination of the plate can be mechanically limited by means of adjustment screws. They are supplied with SAE J744 type connection flange – 2 holes and cylindrical keyed shaft end. Four different types of controls are available, according to the neeeds of use.
