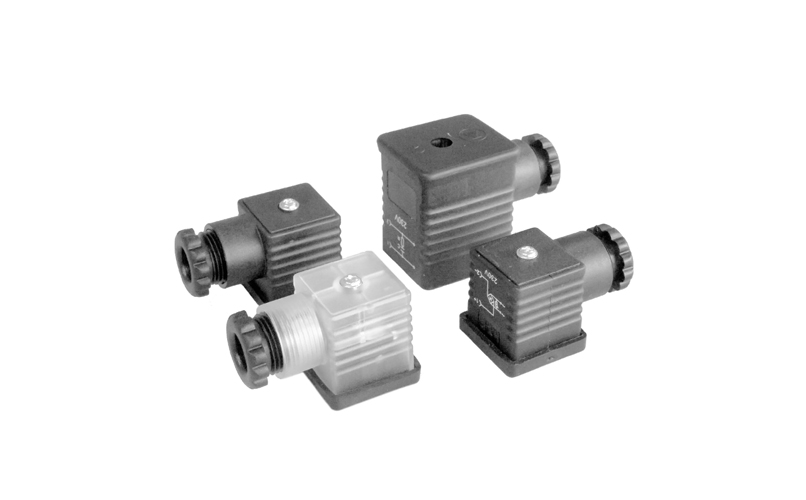

The EC connectors are made according to EN 175301-803, shape “A”. They are used for the electrical connection of valve coils. When they are correctly installed and coupled, they provide waterproof protection according to IEC EN 60529 standards, IP65. Insulation in compliance with IEC 60664-1:2007 standard, operating voltage up to 250 Volt. The wire terminal block is removable from the external housing to allow the wire connections to the clamps, and the electrical contacts can be turned through 90° (except version H) if required. Four different types are available: type A, connector two poles + ground type B*, with LED (available voltages: 10 ÷ 50 and 70 ÷ 250V). type D, with bridge rectifier type H, with RC damping circuit. Type A is also available in gray colour. They are supplied with M3 fixing screw and NBR gasket
