SHUT-OFF VALVES SOLENOID OR HYDRAULICALLY ACTUATED, WITH OR WITHOUT POSITION MONITORING M*F3(M)
Descripcion

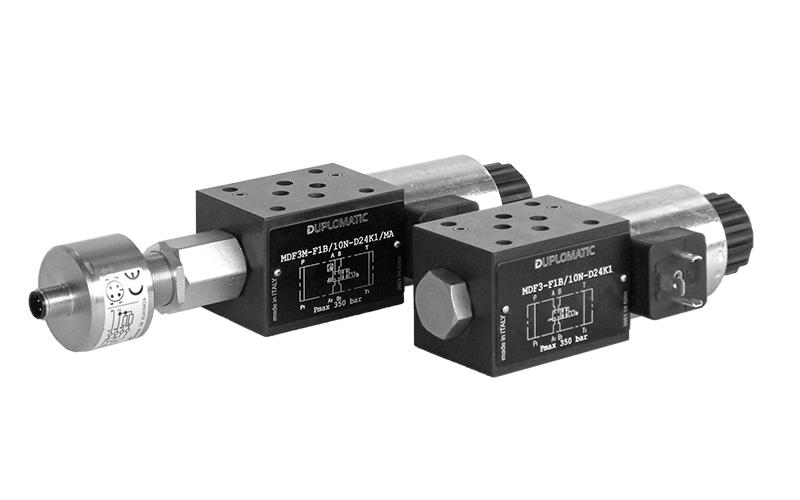

MDF3 and MCF3 are stackable shut-off valves, DC solenoid or hydraulically actuated, with or without spool position monitoring. MDF3 and MCF3 valves are placed under directional control servo-valves in order to guarantee the safety of the circuit when a power failure occurs. Spools are available with float, closed, parallel or cross position when switched. Versions with spool monitoring doesn’t have manual override and cannot be disassembled, due their characteristics and their possible use on machinery subject to safety requirements. The spool position monitoring is available either for initial position or for actuated position.
