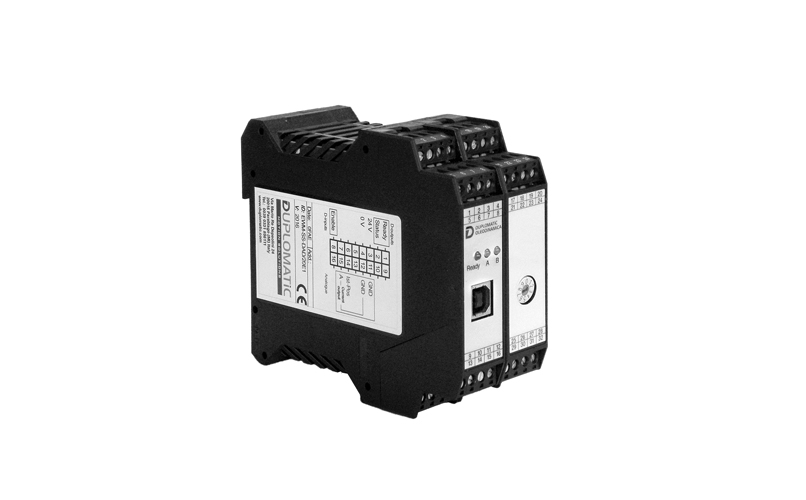

This is a card for the positioning control of up to 9 axes via CanBus connection, within a synchronization system Master / Slave type, that communicate to with the PLC via a Profibus interface (Can/Profibus coupler available separately).
The EWM-SS-DAD card drives an axis provided with an SSI position sensor (high precision), or rather an analogue sensor. Each axis to be synchronized within the system requires one card. The synchronization controller adapts the speed of the slave axis. Positioning errors during movement increase or reduce the slave axis velocity, in order to compensate the synchronization error. The CAN address can be selected directly by the rotary switch on the card.
To configure it you need the EWMPC/20 software, which can be downloaded from this page. Connection by USB port on the front panel.
User Manuals are available upon registration in the reserved area.
