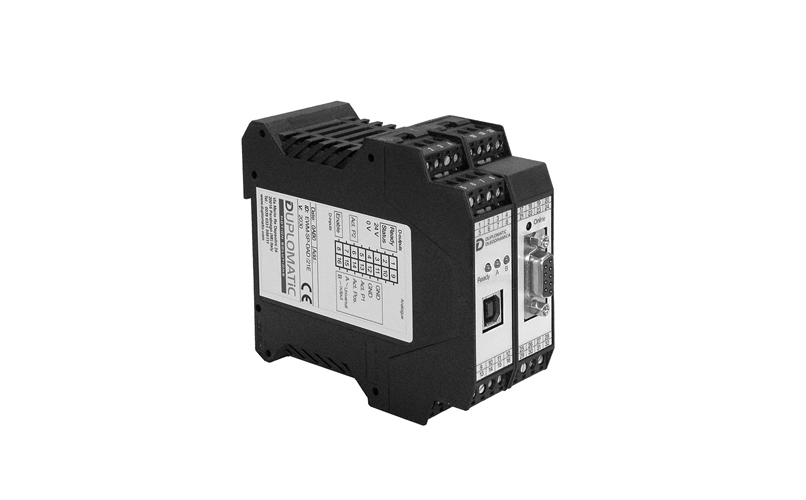

AXIS POSITIONING CONTROLLER WITH PRESSURE LIMITATION IN CLOSED LOOP WITH PROFIBUS INTERFACE EWM-SP-DAD
Descripcion
The EWM-SP-DAD digital card manages the position control with pressure limitation of hydraulic actuators equipped with a digital position sensor and analog pressure sensors. This card is an axis controller with two types of position control: stroke dependent deceleration (SDD) or numerical control (NC). It communicates with the PLC via the integrated Profibus interface. The output value, voltage or current type, has to be configured via software.
To configure it you need the EWMPC/20 software, which can be downloaded from this page. Connection by USB port on the front panel. Some parameters can also be configured via Profibus interface.
User Manuals and descriptors files are available upon registration in the reserved area.
