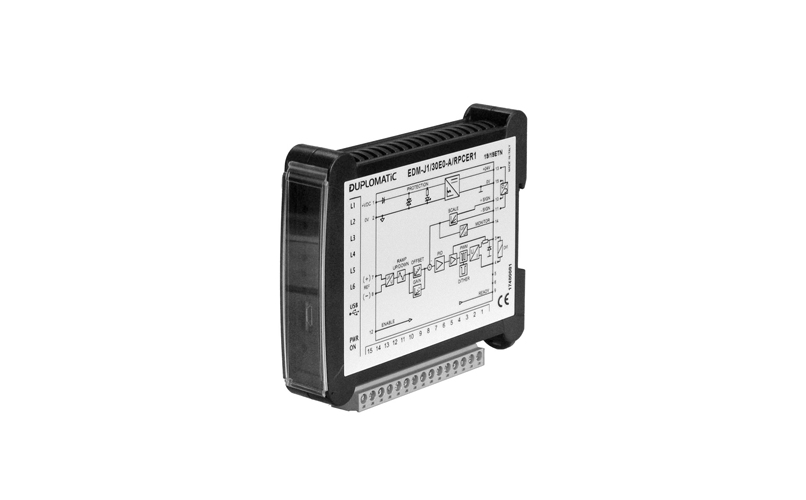

The EDM-J card is a digital amplifier intended for closed loop control of single solenoid or double solenoids proportional valves with feedback and servo-proportional valves, for rail mounting DIN EN 50022.
The card controls the position of the spool of the valve according to the reference signal, ensuring linear regulation with minimum hysteresis. The reference signal is voltage or current. These cards are preset in the factory according to the ordering code chosen, to optimize performance based on the valve they are combined with.
The front panel houses the LEDs for diagnostics and card operation and a micro-USB port for connection to the EDC software for diagnostics and / or configuration. Kit EDMPC available, catalog 89820. The Io-Link version is to be configured via bus.
