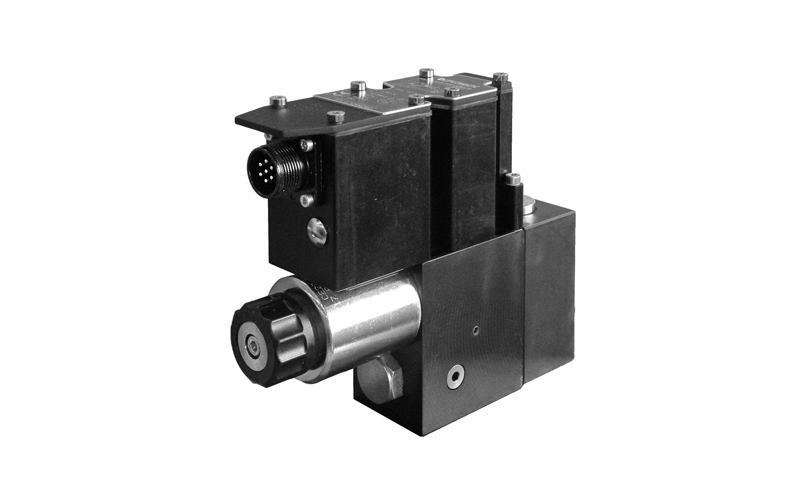

The PZE3G, PZE3GL, PZE3GH are 3-way proportional pressure reducing valves, pilot operated, with on-board electronics. For subplate mounting. Their function is to regulate the outlet pressure inside the working line (A) to a value proportional to the command, reducing the pressure into the P line and also relieving to the tank the overpressure of the working line.
The valves are available with different types of on-board electronics for open loop:
The G version is our standard electronics with analogue interface with current or voltage reference signal with connection 6 pin + PE.
The GL version comes with compact box with Io-Link, Can-Open or analog interface and 5 pin M12 connection.
The GH version has interface for fieldbus communication type EtherCAT, Ethernet/IP, Profinet and PowerLink, with 11 pin M12 connection.
